Large Span Steel Structures for Stadium

EIHE Steel Structure’s Large Span Steel Structures for Stadium play a vital role in stadium construction, providing a durable and reliable solution for spanning large distances.

Large Span Steel Structures for Stadiums are a testament to the advancements in engineering and architecture, combining strength, durability, and aesthetics to create iconic sporting venues. These structures are designed to span vast distances, often covering entire playing fields and spectator areas, while maintaining structural integrity and safety.

The use of steel in large span structures offers several advantages. Steel is a lightweight material with high strength-to-weight ratio, allowing for thinner yet sturdy members that can span long distances. It is also relatively easy to work with, enabling complex shapes and geometries to be achieved with precision. Furthermore, steel structures can be prefabricated and assembled on-site, reducing construction time and improving efficiency.

In stadiums, large span steel structures are often employed in the roofing systems, supporting the canopy that covers the seating areas and protecting spectators from the elements. These structures can take various forms, including trusses, arches, cable-supported roofs, and more. Each design is tailored to the specific needs and requirements of the stadium, considering factors such as span length, loading conditions, and aesthetic preferences.

The design of large span steel structures for stadiums requires a meticulous and collaborative approach. Engineers work closely with architects and other design professionals to develop innovative solutions that balance structural performance, functionality, and aesthetics. The process involves detailed analysis and modeling to ensure the structures can withstand various loads, including the weight of the roof, wind forces, and snow loads.

Moreover, the use of advanced materials and technologies has further enhanced the performance of large span steel structures in stadiums. Materials such as high-strength steel and corrosion-resistant coatings improve the durability and longevity of the structures. Technologies like computer-aided design (CAD) and building information modeling (BIM) enable more accurate and efficient design and construction processes.

In conclusion, large span steel structures are a crucial component of modern stadiums, providing robust and visually appealing solutions for covering vast areas. Their unique properties and the advancements in engineering techniques make them an ideal choice for creating iconic and functional sporting venues that will stand the test of time.

Large Span Steel Structures for Stadium Details

Large span steel structures for stadiums are a complex and specialized field that involves meticulous planning, design, and construction. Here are some key details related to large span steel structures in stadiums:

1. Design Considerations:

Span Requirements: The design must account for the desired span of the roof or other structural elements, which can vary depending on the size and layout of the stadium.

Load Capacity: The steel structure must be able to support the weight of the roofing materials, seating areas, and any other elements, as well as the expected load from spectators and other factors.

Weather Resistance: The structure must be designed to withstand wind, rain, snow, and other weather conditions, ensuring stability and durability.

Architectural Vision: The design should align with the stadium's architectural vision, creating a visually appealing and functional space.

2. Structural Components:

Beams and Columns: These are the primary load-bearing elements of the structure, supporting the weight and spanning the required distances.

Roofing Systems: Roofing systems can vary, ranging from cantilevered roofs to cable-supported systems. The choice depends on the desired aesthetics, span requirements, and budget.

Connections and Joints: Properly designed connections and joints are crucial for the integrity and stiffness of the structure. They must be able to transfer loads effectively and maintain stability.

3. Fabrication and Construction:

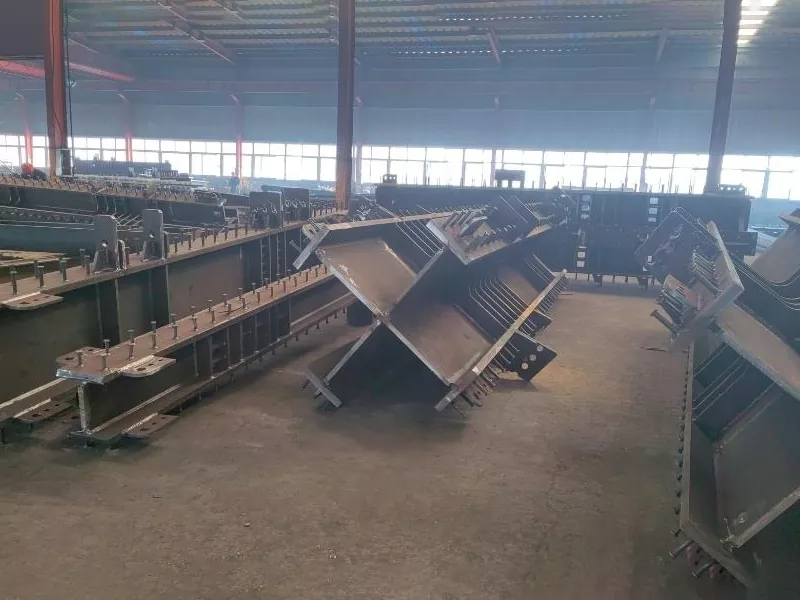

Prefabrication: Steel components are often prefabricated in controlled environments, ensuring accuracy and quality. This can reduce on-site construction time and improve efficiency.

Assembly and Installation: The prefabricated components are then transported to the site and assembled using techniques such as welding and bolting. Precision and coordination are key to ensuring the accuracy of the final structure.

Temporary Support Systems: During construction, temporary support systems may be required to support the structure until it is fully assembled and capable of supporting itself.

4. Material Selection:

Steel Grades: The choice of steel grade depends on the strength, ductility, and corrosion resistance required for the specific application.

Surface Treatments: Coatings and finishes may be applied to the steel to improve corrosion resistance, durability, and aesthetics.

5. Safety and Compliance:

Structural Analysis: Detailed structural analysis is conducted to ensure the safety and stability of the steel structure. This involves calculating loads, stresses, and deflections to ensure the structure meets all safety standards.

Compliance with Building Codes: The design and construction of the steel structure must comply with local building codes and regulations, ensuring the safety of the stadium and its occupants.

It's worth noting that each stadium project is unique, and the specific details of the large span steel structure will vary depending on the project's requirements, constraints, and budget. It is crucial to consult with experienced structural engineers, architects, and contractors to ensure the successful design, fabrication, and construction of the steel structure for the stadium.

Here are five frequently asked questions (FAQ) about large span steel structures for stadiums:

1. What are the main advantages of using steel for large span stadium structures?

Steel offers exceptional strength and durability, making it a suitable material for supporting large spans.

It is lightweight compared to other materials, reducing the overall structural load.

Steel structures can be designed with greater flexibility, allowing for more innovative and unique architectural designs.

Steel is also relatively easy to fabricate and assemble, which can shorten construction time.

2. How are large span steel structures designed to ensure stability and safety?

The design of large span steel structures involves complex engineering calculations to determine the optimal shape, size, and configuration of steel members.

Considerations include load-bearing capacity, wind resistance, seismic performance, and other environmental factors.

Connection details are carefully designed to ensure the integrity and stiffness of the structure.

3. What are some examples of large span steel structures used in stadiums?

Roof structures, such as cantilevered roofs or cable-supported roofs, are common in stadiums. These structures span large areas while maintaining a light and open feel.

Trusses and arches are also frequently used to create unique and visually appealing roof shapes.

Steel frameworks may also support seating areas, walkways, and other stadium facilities.

4.How do large span steel structures impact the construction process of stadiums?

Steel structures can often be prefabricated in controlled environments, reducing on-site construction time and improving efficiency.

Modular design allows for easier transportation and assembly, minimizing the need for heavy equipment and reducing the overall cost of construction.

However, the installation of steel structures requires skilled labor and precise coordination to ensure accurate alignment and connection.

5.How do modern technological advancements affect the design and construction of large span steel structures for stadiums?

Modern technological advancements, such as BIM (Building Information Modeling) and digital fabrication techniques, have greatly enhanced the design and construction process of large span steel structures.

BIM allows for more accurate modeling and simulation of the structure, enabling designers to identify and address potential issues early in the design phase.

Digital fabrication techniques, such as 3D printing and robotic welding, can improve the precision and efficiency of steel fabrication.

Additionally, advanced materials and coatings can improve the durability and longevity of steel structures, reducing maintenance costs over the lifespan of the stadium.
